Designed for rapid response and effective initial fire attack, this Sinotruk Howo Water Tank Fire Truck is engineered to meet the critical demands of urban and industrial firefighting. Built on the robust and proven Sinotruk Howo chassis, it combines a powerful diesel engine, high-capacity storage, and advanced fire suppression systems in a single, purpose-built unit. Its intelligent layout is segmented into a dedicated firefighter crew compartment, organized equipment storage, a large-volume tank, and an easily accessible pump room, ensuring operational readiness for any emergency.
Product Features
Efficient Fire Suppression System: Equipped with high-performance fire pumps and remotely controlled fire monitors, the truck delivers powerful, focused water or foam streams over long distances (up to 85 meters for water), enabling firefighters to combat blazes effectively and safely from an optimal distance.
Large-Capacity Integrated Tank: The Sinotruk Howo Water Tank Fire Truck features a scientifically designed tank section with significant capacity for both water and foam concentrate. This allows for sustained firefighting operations at the scene, making it ideal for areas with limited hydrant access.
Robust Power and Mobility: Powered by a high-torque diesel engine and available in 4x2 or 6x4 drive configurations, the Sinotruk Howo chassis provides excellent mobility and stability on various road conditions, ensuring a prompt and reliable response to emergencies in urban and industrial settings.
Intelligent and Safe Design: The vehicle structure prioritizes crew safety and operational efficiency. The separated, ergonomic crew cab accommodates 2+4 personnel, while clearly designated compartments for equipment, tank, and pump allow for logical workflow and quick deployment at the incident site.
Type1: Sinotruk Howo 8T Water Tank/Foam Fire Truck
|
Sinotruk Howo 8T Water Tank/Foam Fire Truck |
||
|
Chassis Brand/Model |
Sinotruk/ZZ5207TXFV471GF5 |
|
|
Engine Power (KW/HP) |
257/249,251/341 |
|
|
Wheelbase (mm) |
4700 |
|
|
Overall Dimensions (mm) |
8360 × 2510 × 3550 |
|
|
Fuel Type |
Diesel |
|
|
Number of Occupants |
2+4 |
|
|
Drive Type |
4×2 |
|
|
Emission Standard |
GB17691-2018 China VI |
|
|
Gross Vehicle Mass (kg) |
19100 |
19100 |
|
Water Tank Capacity (m³) |
8.1 |
6.0 |
|
Foam Tank Capacity (m³) |
/ |
2.059 |
|
Fire Pump Model |
CB10/20 |
|
|
Fire Pump Flow Rate |
60 L/s @ 1.0 MPa |
|
|
Fire Monitor Model |
PS60 |
PL48 |
|
Fire Monitor Flow Rate |
60 L/s @ 1.0 Mpa |
48 L/s @ 1.0 MPa |
|
Water Jet Range (m) |
≥ 60 |
≥ 60 |
|
Foam Jet Range (m) |
/ |
≥ 55 |

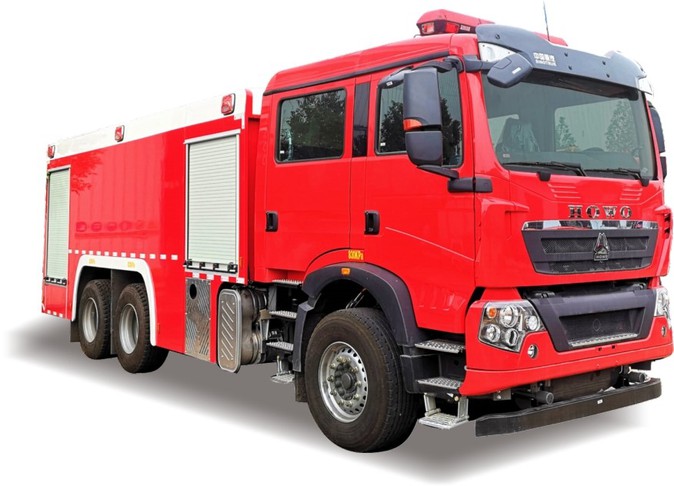

Type2: Sinotruk Howo 12T/16T/18T Water Tank/Foam Fire Truck
|
Sinotruk Howo 12T/16T/18T Water Tank/Foam Fire Truck |
||
|
Chassis Brand/Model |
Sinotruk/ZZ5357TXFV464MF5 |
|
|
Engine Power (KW/HP) |
327/444,341/463 |
|
|
Wheelbase (mm) |
4300+1400/4600+1400 |
|
|
Overall Dimensions (mm) |
9680/10170 × 2550 × 3620/3570 |
|
|
Fuel Type |
Diesel |
|
|
Number of Occupants |
2+4 |
|
|
Drive Type |
6×4 |
|
|
Emission Standard |
GB17691-2018 China VI |
|
|
Gross Vehicle Mass (kg) |
27600/31800 |
|
|
Water Tank Capacity (m³) |
12.2 |
15.8 |
|
Foam Tank Capacity (m³) |
3.039/9.1 |
3.824/11.9 |
|
Fire Pump Model |
CB10/60 |
|
|
Fire Pump Flow Rate |
60 L/s @ 1.0 MPa |
|
|
Fire Monitor Model |
PS50 |
PL48 |
|
Fire Monitor Flow Rate |
50 L/s @ 1.0 Mpa |
48 L/s @ 1.0 MPa |
|
Water Jet Range (m) |
≥ 65 |
≥ 60 |
|
Foam Jet Range (m) |
/ |
≥ 55 |
Type3: Sinotruk Howo 25T Water Tank/Foam Fire Truck
|
Sinotruk Howo 25T WaterTank/Foam Fire Truck |
||
|
Chassis Brand/Model |
Sinotruk/ZZ5447TXFV466MF5 |
|
|
Engine Power (KW/HP) |
327/444,341/463 |
|
|
Wheelbase (mm) |
1950+4600+1400 |
|
|
Overall Dimensions (mm) |
11990 × 2550 × 3560 |
|
|
Fuel Type |
Diesel |
|
|
Number of Occupants |
2+4 |
|
|
Drive Type |
6×4 |
|
|
Emission Standard |
GB17691-2018 China VI |
|
|
Gross Vehicle Mass (kg) |
42450 |
42450 |
|
Water Tank Capacity (m³) |
24.8 |
20.9 |
|
Foam Tank Capacity (m³) |
/ |
3.824 |
|
Fire Pump Model |
CB10/100 |
|
|
Fire Pump Flow Rate |
100 L/s @ 1.0 MPa |
|
|
Fire Monitor Model |
Ps80/PL80 |
|
|
Fire Monitor Flow Rate |
80 L/s @ 1.0 Mpa |
80 L/s @ 1.0 MPa |
|
Water Jet Range (m) |
≥ 85 |
≥ 80 |
|
Foam Jet Range (m) |
/ |
≥ 75 |
Why Choose Our Sinotruk Howo Fire Truck?
As a professional manufacturer and supplier, Hubei Jiayun Automobile Co., Ltd. is committed to providing high-quality, reliable firefighting vehicles. Our Sinotruk Howo Water Tank Fire Truck is built with precision, adheres to strict quality control standards, and is designed to offer the best value for your investment. We provide comprehensive support and can customize configurations to meet specific operational needs.
