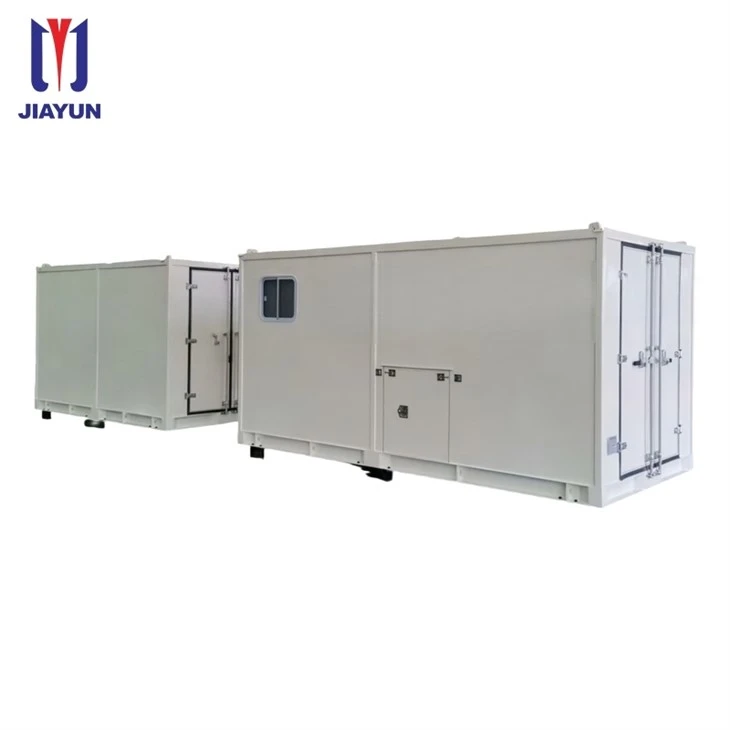

Logging Skid

Jiayun Automobile specializes in engineering robust and highly efficient Logging Skids, also known as Wireline Units or Slickline Units. Designed for the demanding environments of oil and gas exploration, our skids are essential for critical downhole operations. Available in two primary configurations-integrated and split skid-they provide unparalleled flexibility and reliability for wellsite activities. Manufactured to the highest standards, our customized logging skid solutions are built for durability, precise control, and long-term performance, whether for short-term interventions or extended logging while drilling support.

Key Configurations:

Integrated Logging Skid: A comprehensive unit combining the power system, operation cabin, and winch system into a single, cohesive skid. Designed for operational efficiency and streamlined transport.

Split Skid System: Features an independently built power unit connected to a separate winch skid via quick connectors. This design offers enhanced modularity and versatility for complex job requirements.

Both types are engineered for transport on standard flatbed trucks and can be deployed flexibly at the wellhead.

Engineered for Versatility: Our logging skid systems are purpose-built for a wide spectrum of oilfield services, from wireline fishing to production logging. The choice between integrated and split designs allows for perfect mission matching.

Power & Reliability: Equipped with Cummins diesel engines, these units deliver consistent, high-torque power necessary for deep-well operations and continuous duty cycles.

High-Capacity Drum Systems: Designed to hold extensive lengths of both armored cable and high-strength steel wire, supporting operations in ultra-deep wells. Capacities are configurable to meet specific project needs.

Precision Speed Control: Advanced hydraulic transmission systems provide a broad and smooth range of linear speeds (from 30 m/h to 24,000 m/h), enabling precise tool positioning and efficient running/pulling.

Rugged and Durable Construction: Built with high-grade materials to withstand harsh wellsite conditions, extreme weather, and the rigors of transportation, ensuring a long service life and reduced downtime.

Transport and Deployment Ready: Standardized skid dimensions and mounting ensure easy, secure loading onto flatbed trucks or trailers for rapid mobilization between sites.

Our wireline units are critical assets in modern hydrocarbon extraction, serving key functions across the well lifecycle:

Production Logging: Deploying diagnostic tools to assess well performance, fluid flow, and production profiles in completed wells.

Completion & Open-Hole Logging: Conducting geological evaluation in newly drilled wells to determine reservoir characteristics and guide completion strategies.

Well Intervention & Maintenance: Performing essential slickline operations such as:

• Steel Wire Fishing: Retrieving lost or stuck tools from the wellbore.
• Pressure Testing: Gathering downhole pressure data for reservoir management.
• Jarring Operations: Applying mechanical impact to free downhole equipment.
• Well Testing: Evaluating reservoir potential and fluid properties
• .

• Frequently Asked Questions (FAQ)

  1. Q:What is a Logging Skid?

  A: A logging skid is a skid-mounted wireline unit used for well logging, well intervention, and reservoir evaluation operations. Its modular design allows flexible installation on drilling rigs, offshore platforms, trailers, and fixed oilfield facilities.

  2.Q:What is the difference between a Logging Skid and a Logging Truck?

  A: A logging truck is built on a vehicle chassis for road transportation, while a logging skid is a standalone modular unit. Logging skids are often preferred for offshore platforms, remote drilling sites, and permanent installations where vehicle mobility is not require

  3Q:What applications can a Logging Skid be used for?

  A: Logging skids are widely used for open-hole logging, cased-hole logging, production logging, well intervention, slickline operations, reservoir evaluation, and offshore wireline services.

  4.Q:Is the Logging Skid suitable for offshore operations?

  A: Yes. The compact skid-mounted structure is ideal for offshore environments where space is limited. It can be transported and installed efficiently using cranes and platform lifting systems.

  5.Q:Can the Logging Skid be customized?

  A: Yes. Jiayun provides customized solutions based on project requirements, including winch configuration, cable capacity, power systems, hydraulic systems, control cabins, and instrument integration

  6. Q:What cable capacities are available?

  A: Cable capacity depends on the specific configuration and operational requirements. Logging skids can be equipped with different cable lengths and diameters to support both shallow and deep-well operations.

  7.Q: What types of winch systems are available?

  A: Logging skids can be configured with single-drum or double-drum winches, as well as hydraulic or electric drive systems. The final configuration depends on the intended application and logging tools used

  8.Q: Can the Logging Skid support different logging tools?

  A: Yes. The unit can be integrated with various wireline logging, production logging, perforating, slickline, and well intervention tools according to customer requirements.

  9.Q: Is the Logging Skid suitable for desert oilfield operations?

  A: Yes. Logging skids are commonly used in desert oilfields and can be equipped with thermal insulation, air conditioning systems, and corrosion-resistant materials for reliable operation in harsh environments.

  10.Q: What are the advantages of a skid-mounted logging unit?

  A: A skid-mounted logging unit offers flexible deployment, lower transportation costs, modular installation, easy maintenance, and suitability for offshore and remote oilfield applications. It is a practical solution for operators seeking efficient wireline services.
