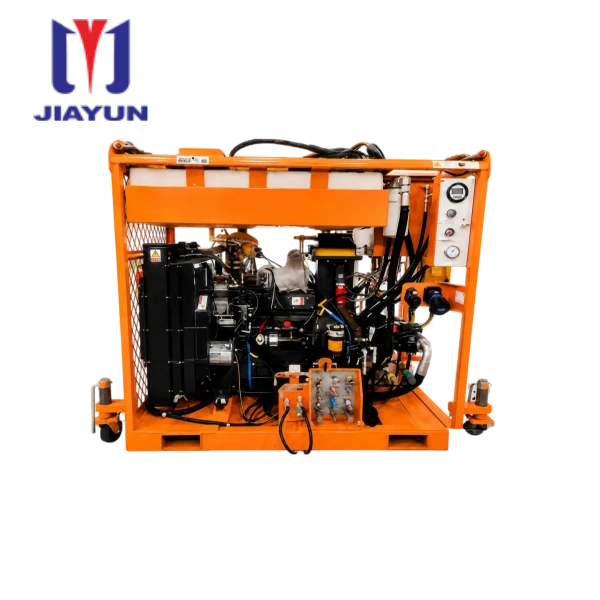

An Offshore Skid Unit is a modular equipment package designed for offshore platforms, vessels and other marine installations where equipment needs to be transported, lifted and positioned within limited deck space.

Unlike a truck-mounted system, an offshore skid is designed around the requirements of the offshore installation itself. The package can integrate equipment such as winches, reels, hydraulic power packs, pumps, control systems and other application-specific equipment into a transportable skid-mounted unit.

For customers looking for an offshore skid unit supplier, the key considerations are not only equipment selection, but also skid dimensions, lifting arrangement, equipment weight, deck layout, power requirements and applicable offshore standards.

Jiayun can develop custom offshore skid units according to the application, available deck space and project requirements.

Offshore equipment cannot always be installed in the same way as conventional land-based equipment.

Limited deck space, crane capacity, transportation restrictions and existing equipment interfaces can all affect the final skid design.

An Offshore Skid Unit can therefore be configured around:

1.Available deck footprint

2.Maximum lifting capacity

3.Equipment weight and center of gravity

4.Transportation dimensions

5.Power requirements

6.Maintenance access

7.Existing offshore equipment interfaces

This application-oriented approach allows the skid package to be developed according to the actual operating environment rather than using one fixed configuration.

An offshore skid can combine several equipment systems into one modular package.

Typical components may include:

1.Structural Skid Frame
Provides the supporting structure for the complete equipment package.

2.Power Unit
Diesel, electric or hydraulic power sources can be selected according to the application.

3.Hydraulic Power System
Hydraulic pumps, motors, valves, manifolds and associated components can be integrated where hydraulic operation is required.

4.Control System
Local or remote controls can be provided for equipment operation and monitoring.

5.Application Equipment
Depending on the project, the skid may incorporate a wireline winch, slickline reel, pump, pressure-control equipment or other oilfield equipment.

6.Lifting & Handling Equipment
Lifting points, lifting frames or forklift pockets can be incorporated according to the handling requirements.

An offshore skid unit can be supplied as a single skid or divided into multiple modules.

The final configuration is determined after reviewing the customer's application, equipment list and offshore installation requirements.

The choice between a single and split configuration depends mainly on lifting capacity, deck space and transportation requirements.

1.Single Skid

A single skid integrates the required equipment into one package.

It can be suitable when the complete unit can be lifted and positioned as one assembly.

2.Split Skid

A split configuration separates major systems into individual modules.

For example:

3.Winch Skid + Hydraulic Power Pack Skid + Control Skid

This arrangement can make individual modules easier to transport, lift and position offshore.

For projects with restricted crane capacity or complicated deck layouts, a custom split-skid configuration may provide greater installation flexibility.

For an offshore equipment supplier, lifting and handling requirements need to be considered during the engineering stage.

The skid may need to accommodate:

1.Certified lifting points

2.Lifting frame

3.Forklift pockets

4.Defined center of gravity

5.Maximum gross weight

6.Crane lifting requirements

7.Third-party inspection

Depending on the project, applicable requirements may include DNV 2.7-1, DNV 2.7-3, ISO 10855 or other customer-specified standards.

Certification requirements should be confirmed before quotation because they can affect the structural design, lifting arrangement and equipment selection.

For oilfield customers, the Offshore Skid Unit can be configured for different well-service applications.

A custom offshore wireline skid may integrate:

1.Wireline winch

2.Cable drum

3.Hydraulic power pack

4.Tension measurement

5.Depth measurement

6.Control system

7.Pressure-control interface

8.Tool handling equipment

For slickline operations, the configuration can be adapted around the required slickline drum, hydraulic drive and control equipment.

This makes the skid platform suitable for offshore wireline, slickline and well intervention applications where a truck-mounted unit is not practical.

The offshore skid unit price depends on the equipment package and project requirements rather than the skid frame alone.

The main cost factors include:

1.Main equipment and required capacity

2.Single-skid or split-skid arrangement

3.Overall dimensions and structural load

4.Power source and hydraulic system

5.Lifting arrangement

6.Hazardous-area requirements

7.Offshore certification and inspection

8.Corrosion protection

9.Control and monitoring systems

10.Customer-specific engineering requirements

For an accurate offshore skid unit quotation, customers should provide the intended application, equipment list, available deck space, lifting capacity and applicable project standards.

Offshore projects rarely have identical installation conditions. The required skid dimensions, equipment combination, lifting arrangement and certification can vary from one project to another.

Jiayun provides custom offshore skid unit solutions based on the customer's application and technical requirements.

The engineering process can include:

1.Application review

2.Equipment selection

3.Skid layout

4.Structural design

5.Hydraulic and power-system integration

6.Control-system configuration

7.Lifting arrangement

8.Technical documentation

9.Factory testing before shipment

For customers sourcing an offshore skid unit from China, the configuration can be reviewed according to the project specification before quotation

1.Offshore Wireline Operations

2.Offshore Slickline Operations

3.Well Intervention

4.Hydraulic Power Supply

5.Pumping Equipment

6.Offshore Service Equipment

7.Modular Oilfield Equipment

8.Offshore Platform Equipment

1.What is an offshore skid unit?

An offshore skid unit is a modular equipment package designed for offshore platforms, vessels and marine installations. Equipment is mounted on a structural skid for transportation, lifting and installation.

2.What is the difference between an offshore skid and a truck-mounted unit?

An offshore skid is designed for offshore lifting, deck installation and modular deployment, while a truck-mounted unit is built around a road-going vehicle and chassis.

3.Can an offshore skid unit be customized?

Yes. The skid arrangement, equipment package, power system, lifting arrangement and control system can be configured according to the project requirements.

4.How is the offshore skid unit price determined?

The price depends on the equipment configuration, capacity, skid structure, power system, lifting requirements, certification and project-specific engineering.

5.Can you supply an offshore skid unit from China?

Yes. The skid configuration can be developed according to the customer's technical specification, application and offshore installation requirements.

6.Can an offshore skid unit be used for wireline operations?

Yes. It can be configured as an offshore wireline skid with a winch, reel, hydraulic power system, measurement and control equipment.
