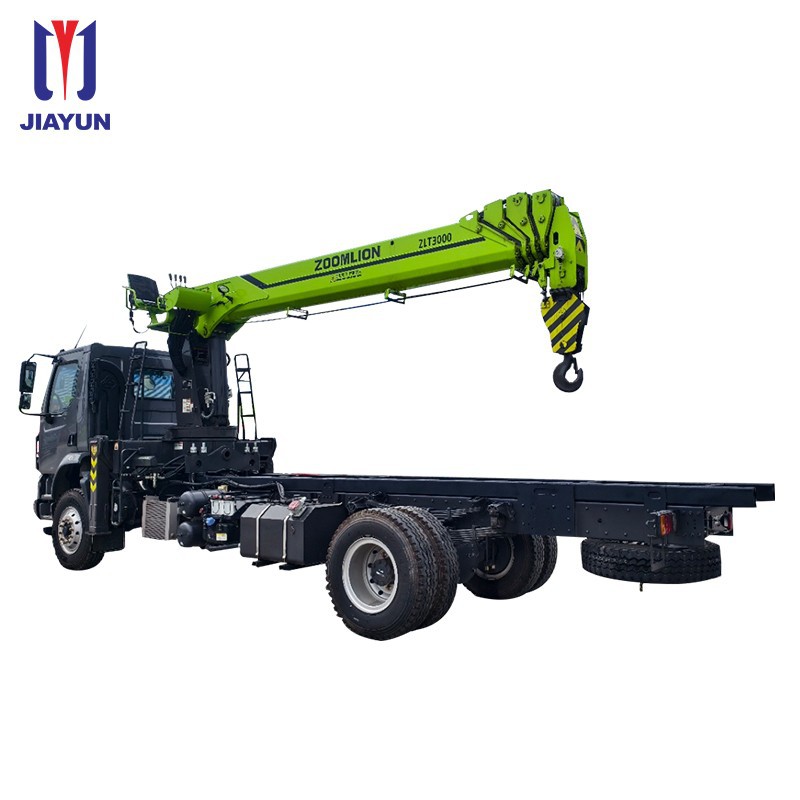

DFLZ Crane Truck

DFLZ Crane Truck is an integrated hoisting and transportation equipment that integrates the mature and reliable LZ1180H5ACT chassis with Zoomlion's leading crane technology. Available in two lifting capacities of 10 tons and 12 tons, this series is equipped with a 5-section full-extend boom, boasting robust power, flexible control, and high-efficiency operation capabilities. Liuzhou Automobile Truck-mounted Crane is suitable for medium-and-short-distance material hoisting and transportation needs across diverse working conditions. With scientific design and solid configurations, the vehicle achieves an excellent balance between outstanding lifting performance and load capacity within a limited body size, making it an ideal tool for urban construction, logistics transfer, engineering installation and other fields.

• General Chassis Specifications

Vehicle Model: LZ1180H5ACT

Engine: Yuchai 6-cylinder 245-horsepower engine, featuring ample power and high reliability

Transmission: Fast 8-speed transmission with high-low gears, adaptable to complex road conditions

Wheelbase: 5100mm, balancing stability and passability

Axle Configuration: 5.5-ton front axle / 10-ton rear axle, with strong load-bearing capacity

Cab: Single-row semi-floating cab, equipped with manual hydraulic tilting, electric windows, central locking and air conditioning, ensuring comfortable driving and riding experience

Frame: 282 (8+4) partially three-layer reinforced frame, sturdy and durable

Tires: 10.00R20 18PR steel wire tires

Leaf Springs: 11/12 pieces at the front, 9+12 pieces at the rear, combining load-bearing capacity and ride comfort

Safety Electronics: Liuzhou Automobile Truck-mounted Crane comes standard with ABS anti-lock braking system, self-adjusting arms, right-turn reminder, and driving recorder (compatible with Beidou/GPS)

• Special Crane Specifications (10-ton vs 12-ton)

• General Upper Mounting Dimensions

Overall Vehicle Dimensions: Approximately 9000×2550×3780/3880/3960 mm (L×W×H)

Cargo Box Dimensions: Optional approximately 6000/6050/6100×2450×550/600 mm (L×W×H)

Curb Weight: 11000/11500/12000 kg (corresponding to different upper mountings)

Rated Load Capacity: Approximately 5800-6870 kg (strong compliant load-bearing capacity)

1. Golden Power Chain, Reliable and Efficient

The classic combination of Yuchai engine, Fast transmission and heavy-duty axles has been long-term verified by the market, ensuring high vehicle availability and operational economy.

2. Zoomlion Crane, Leading Performance

Strong Lifting Capacity: The 12-ton model achieves a moment of 300 kN.m; the 10-ton model can still lift 1.2 tons at a radius of 17.6 meters, with mid-to-long boom performance leading competitors by more than 10%.

Solid Structure: Dongfeng Liuzhou Automobile Crane Truck adopts HG785 high-strength steel plates. Key components (such as those of the 12-ton model) apply two-stage telescopic oil cylinder and double telescopic boom-retracting rope technology, ensuring smooth and stable boom extension and retraction, more direct force transmission, and significantly improved heavy-load operation capability.

Sustained Operation: Equipped with a standard independent hydraulic radiator, it effectively controls system oil temperature, avoids performance degradation caused by high temperature, and is suitable for long-time, high-intensity continuous operations.

3. Safe, Stable and Easy to Operate

Wide Outrigger Span: 7.7 m for the 12-ton model and 6 m for the 10-ton model, providing a wide and stable operation support surface with strong anti-overturning capacity.

Comprehensive Safety Protection: Standard with over-hoisting alarm device to prevent misoperation; the chassis is equipped with active safety configurations such as ABS and self-adjusting arms.

Humanized Operation: Dongfeng Liuzhou Auto Crane Truck is equipped with start-stop functions both inside and outside the cab, with optional knob-type remote throttle, offering operators excellent visibility and convenient control. It adopts planetary slewing and plunger winch mechanisms, featuring precise and fine-tuned movements as well as longer service life of components.

4. Integrated Upper Mounting Design

Full-length Auxiliary Beam: The crane's auxiliary beam runs through the entire chassis frame, enabling uniform force distribution, greatly protecting the chassis structure and preventing frame deformation.

Reasonable Layout: While ensuring sufficient cargo box length (over 6 meters), it achieves a large crane operation range and high lifting height, truly realizing "one vehicle with multiple functions".
