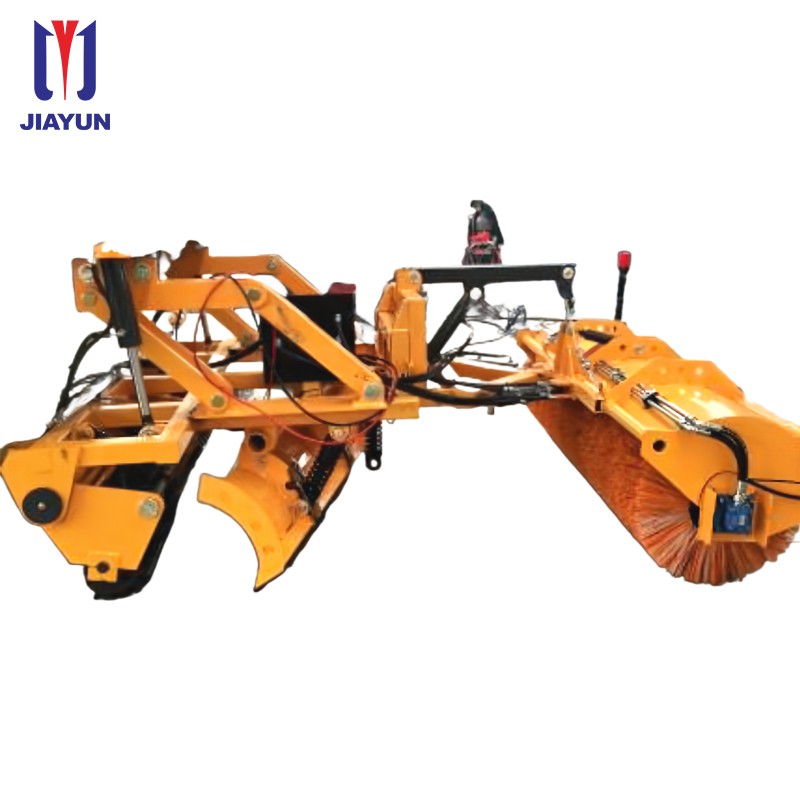

The JYT-3100S Three-in-One De-Icing Equipment from Jiayun Automobile represents a breakthrough in efficient winter road maintenance. This integrated machine combines three essential functions-ice-crushing, clearing, and sweeping-into a single powerful unit, eliminating the need for multiple specialized vehicles. Engineered for durability and performance, it's designed to keep roads safe and clear during harsh winter conditions.
Our three-in-one de-icing equipment offers customizable parameters and configuration options to match various operational requirements and vehicle models, making it the ideal choice for municipalities, highway departments, and contractors seeking efficient snow and ice removal solutions.
Comprehensive Functional Components
1. Heavy-Duty Ice-Crushing Roller
Constructed with premium Wuhan Iron and Steel (WISCO) plates-4mm thick on sides and 5mm on the bottom-the ice-crushing roller features a durable "field"-shaped lattice structure designed to break through even the thickest ice layers. Its robust carriage measures 6200 × 2350 × 1600mm and incorporates four longitudinal beams and a front-mounted oil cylinder for optimal performance and reliability. The integrated rear door allows for efficient material handling and maintenance access.
2. Adjustable Push Shovel
The push shovel component effectively clears crushed ice and snow debris from road surfaces. Its curved shovel surface (2600×50mm) is engineered to follow road contours for maximum cleaning efficiency. Powered by the vehicle-mounted battery system, the shovel angle and road contact position are fully adjustable, allowing operators to push broken ice and snow to the roadside with precision control.
3. Integrated Snow Roller
Working in harmony with the ice-crushing and pushing components, the snow roller completes the three-stage snow and ice removal process. This synchronized system ensures thorough cleaning in a single pass, significantly reducing the time and resources required for winter road maintenance compared to traditional single-function equipment.
Key Features and Advantages
- Triple-Function Efficiency: Combines ice-crushing, pushing, and snow-rolling operations in one continuous workflow
- Heavy-Duty Construction: Built with premium steel plates and reinforced structural design for extended service life
- Precision Control: Adjustable push shovel with battery-powered positioning system for optimal road surface contact
- Vehicle Compatibility: Customizable mounting configurations to fit various truck models and chassis types
- Time and Cost Savings: Reduces equipment needs, fuel consumption, and labor requirements compared to multiple single-function machines
- Comprehensive Ice Management: Effectively handles everything from light snow accumulation to thick, compacted ice layers
Product Parameter
|
Project |
Description |
Picture |
|
Ice removal Combination |
Model: JYT-3100S Overall dimensions: 3640×2620×1050mm Overall weight: 1300kg |
|
|
Ice-crushing Roller |
The carriage adopts Wuhan Iron and Steel (WISCO) plates with a thickness of 4mm for the sides and 5mm for the bottom, featuring a "field"-shaped lattice structure.It is equipped with a rear door, four longitudinal beams, and a front-mounted oil cylinder. Carriage dimensions: 6200 ×2350 × 1600 ( unit: mm , default for mechanical/automotive dimensions unless specified otherwise) |
|
|
Push Shovel |
The power unit is controlled by the vehicle-mounted battery to adjust the push shovel to an appropriate angle and contact position with the road surface, allowing it to push the crushed ice slag on the road to the edge of the road.Curved shovel surface Size: 2600×50mm. |
|
Application Areas
This versatile three-in-one de-icing equipment is perfectly suited for:
Municipal Road Maintenance: Keeping city streets, bridges, and public thoroughfares safe and accessible
Highway and Expressway Systems: Maintaining critical transportation corridors during winter storms
Airport Operations: Clearing runways, taxiways, and apron areas for uninterrupted aviation activities
Commercial Facilities: Maintaining parking lots, logistics centers, and industrial complexes
Mountain Passes and Rural Roads: Addressing challenging terrain where rapid ice removal is essential for safety
